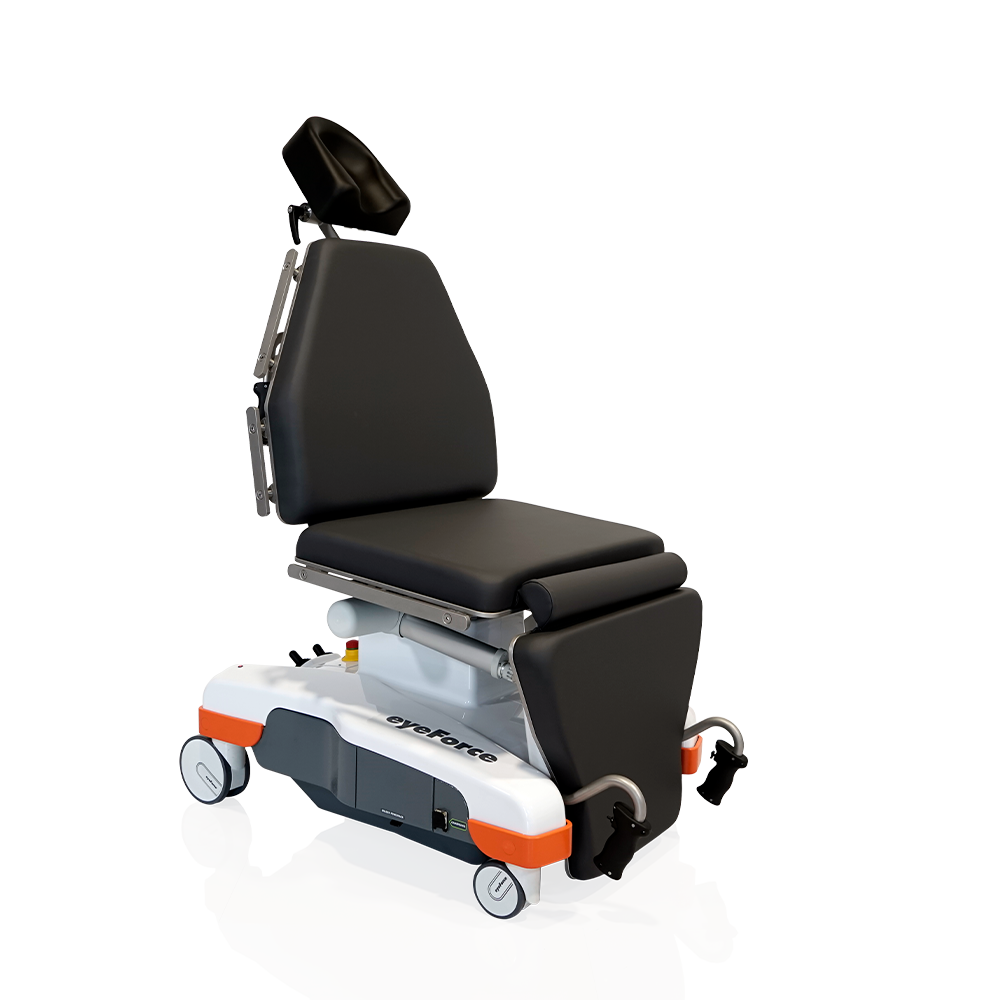

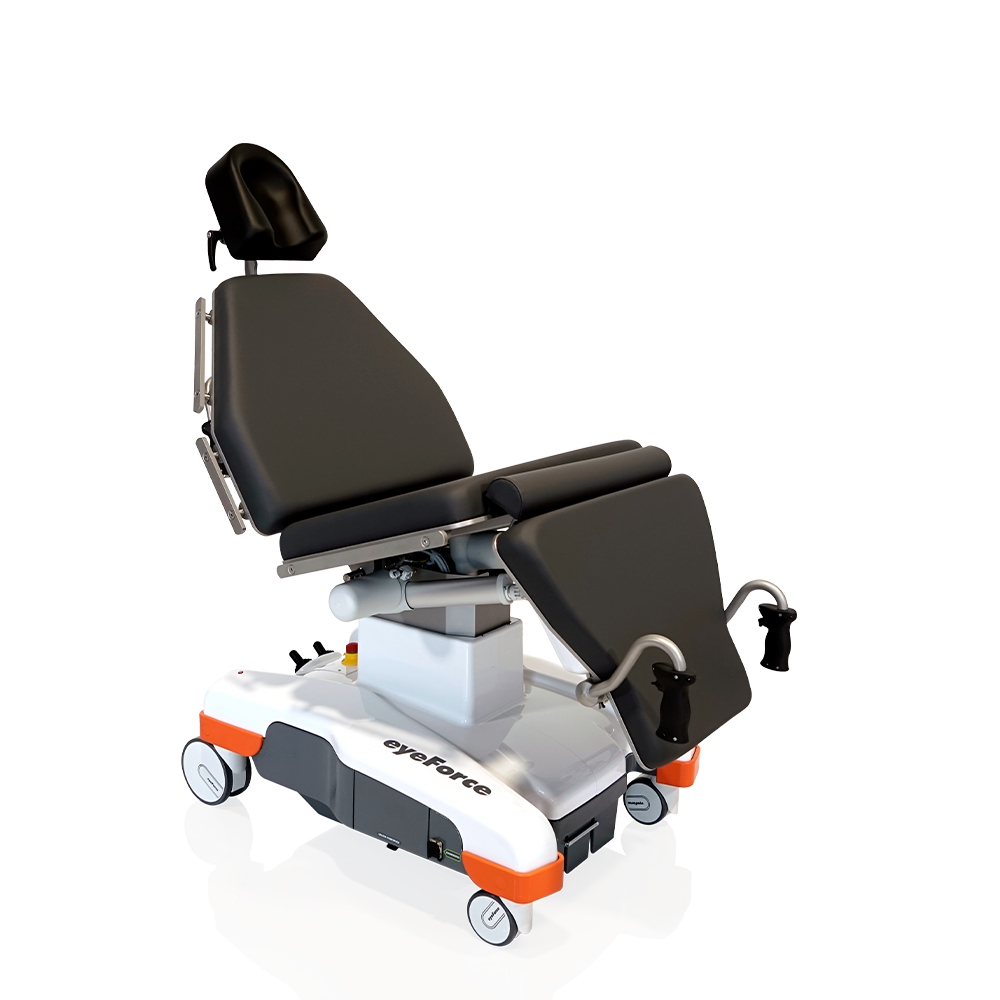

eyeForce Ophthalmic Chair

Features and Benefits

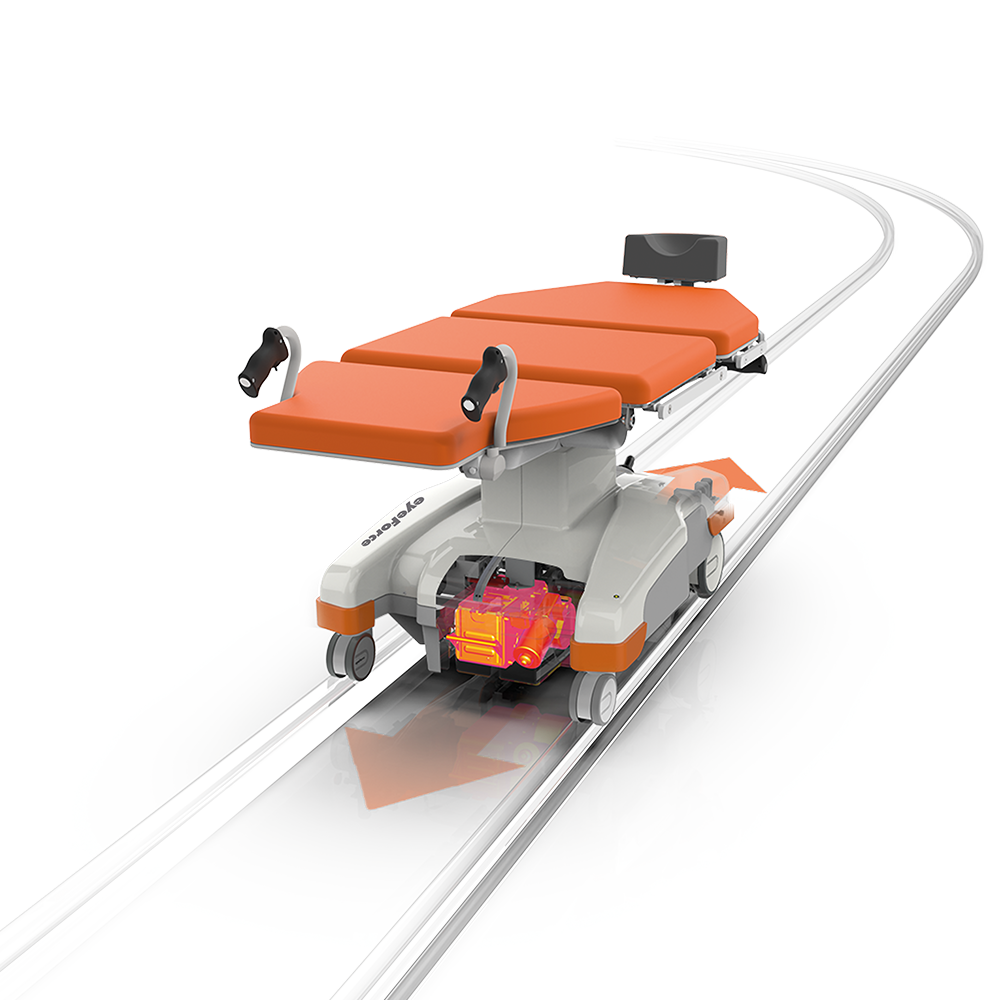

• Optional e‑Drive system with fifth drive wheel

  • Enables effortless, battery-powered movement over long distances with minimal operator effort.

• Electronically controlled braking and steering system

  • Provides precise maneuverability with modes for free movement, braking, and directional guidance.

• Surface Extension System (SES)

  • Automatically adjusts patient position during height changes, reducing strain and repositioning time.

• Intuitive hand control with five memory presets and Auto-Run

  • Speeds up positioning with programmable functions and one-touch return to home position.

• 3D-adjustable headrest with neck support

  • Ensures stable, comfortable positioning of the patient’s head for various ophthalmic procedures.

• Low entry height (~580 mm)

  • Allows safe and easy patient mounting, especially important for elderly or mobility-impaired patients.

• Sterile foot-operated dual joysticks

  • Offers hands-free, precise control of chair positioning during surgery.

• Lightweight, durable chassis with smooth-rolling double castors

  • Enhances mobility and durability for use across multiple ORs.

• Battery-powered operation with quick-swap drawer

  • Supports flexible, cordless use with up to 100 cycles per charge.

• Integrated norm rails for accessory mounting

  • Customizable with IV poles, wrist rests, monitor arms, and more to suit surgical needs.

Chassis

• Outside length: 900 mm

• Outside width: 662 mm

• Brake system acting on all four castors

• Directionally guided steering (“Steering Guide”), easily activated at the push of a button

• Castor diameter, electrically conductive: Ø 150/100 mm

• Foot control element with joystick

• Emergency stop button

• Optional push-aid (e-drive)

• With equipotential bonding connection

• Abrasion-resistant corner guards (orange) made of synthetic rubber

Upper Frame

• 4-part support frame (head, back, seat, leg part)

• Upholstery thickness (removable upholstery): 40 mm

• Width of upholstery: 650 mm

• Standard stainless steel side rails on both sides: 25 x 10 mm

• Width including norm rails: 700 mm

• Length: 1,780 – 1,900 mm

Angles and Dimensions (L x W):

• Head part: -31° / +22°, 255 x 245 mm

• Back part: 0° / +75°, 540 x 650 mm

• Seat part: -6° / +26°, 450 x 650 mm

• Leg part: 0° / -78°, 510 x 610 mm

Adjustments:

• Height adjustment: 640 – 900 mm

• Entry height: 580 mm

• Legroom: 470 – 730 mm

• Trendelenburg: -26° / Reverse Trendelenburg +6°

Electrical Control

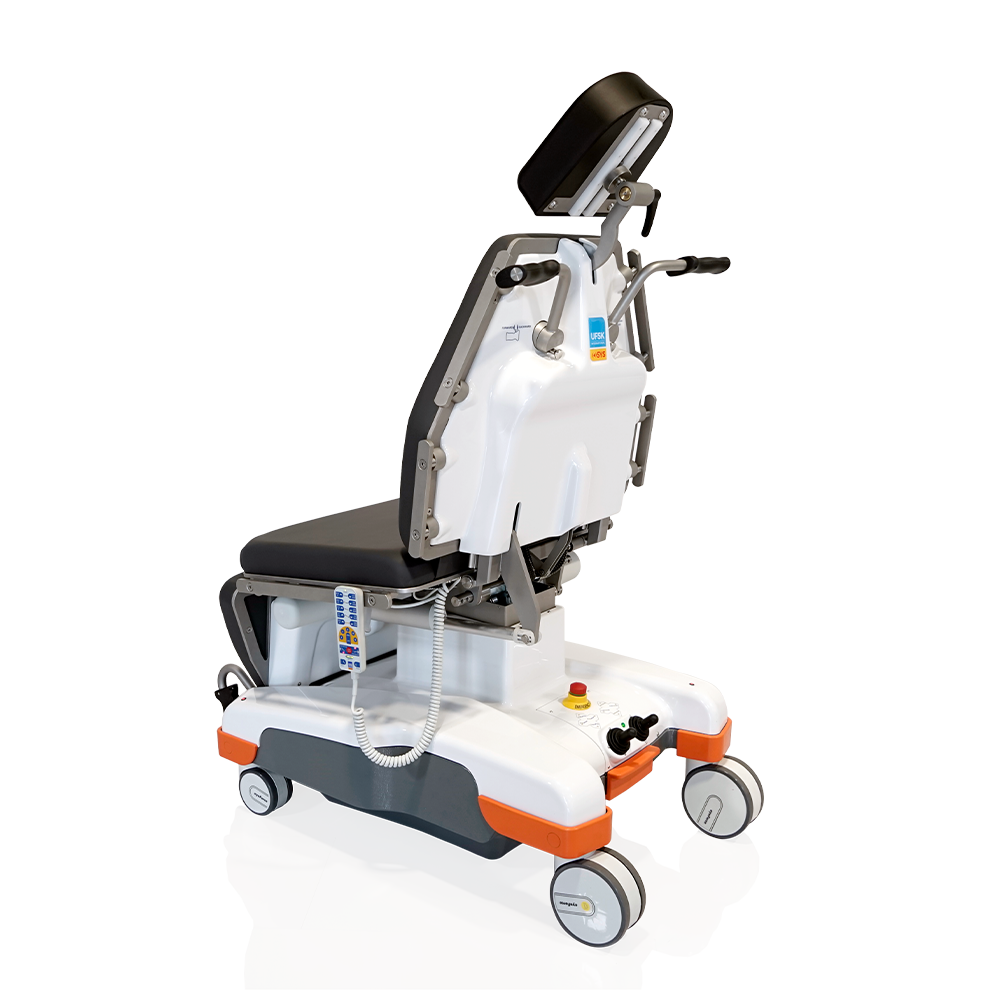

Manual Keypad:

• Memory controller with 10 buttons for head, back, seat, leg part – total up/down

• 2 buttons for directionally guided steering

• 1 button for electronic brake

• 1 easy entry button

• Memory button, on-off button, auto-run function

• 5 freely programmable memory positions

• Visual battery level indicator

Foot Control Element:

• Foot control element with 2 joysticks for total, head, back, Trendelenburg up/down plus activation switch

• Optional push-aid (e-drive)

Electric Drives:

• Head, back, seat, leg part, total up/down

• Trendelenburg / Reverse Trendelenburg
